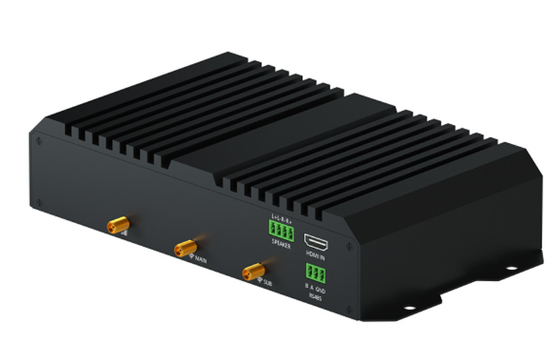

RK3588 8K UHD Octa Core Android Box
Sunchip has more than 10-year experience on PCBA design and mass-production, also passed the ISO9001 certification. Our office &factory have more than 3500 square meters.
Sunchip can provide one-stop service, from PCB layout, prototype, production, PCBA SMT, testing, housing design, assembly, software customization, QC control, after-sale etc.
Product OverView:
-1. Intelligent industrial all-in-one large board, using Rockchip RK3588 octa-core chip solution.
-2. Support Android 12 system. Enhanced power management circuit, support common external devices, rich interface, stable performance.
-3. Suitable for intelligent remote network control: class industrial, medical, large advertising machines, educational video terminals and other equipment.
Main Feature::
1. Octa-Core, 8K output, 4K hardware decoding;
2. Main frequency up to 2.4GhZ;
3. RK3588 performance is higher 3.3 times than RK3399
4. Android 12 OS;
5. Rich interfaces:
6. Network: 2.4G & 5G WIFI; Bluetooth 5.0; 4G LTE Optional; Dual 1000M LAN;
7. Build-in M.2 SSD Extended interface (SSD optional)
|
System
|
CPU
|
RK3588 8-core CPU 8nm process 4 Cortex-A76 and 4 Cortex-A55
|
|
GPU
|
ARM Mali G610 MP4 GPU
|
|
NPU
|
6Tops, int4/int8/int16/FP16
|
|
MCU
|
for low power control
|
|
RAM
|
8GB/16G (optional)
|
|
Memory
|
32GB/64GB/128GB/256GB (optional)
|
|
Operating System
|
Android 12
|
|
Network
|
WiFi
|
IEEE 802.11 a/b/g/n/ac
|
|
Dual wired network
|
Support 1000M wired network network*2
|
|
Mobile Network
|
Support wireless 4G network
|
|
Bluetooth
|
BT5.0
|
|

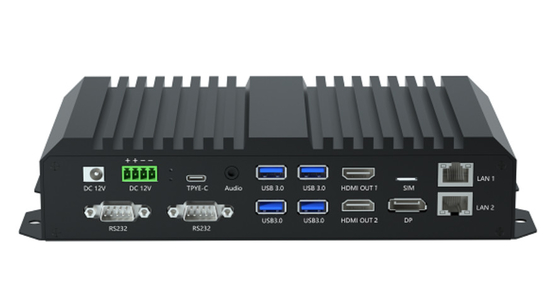

Motherboard Interface
|
TYPE_C
|
Standard Type_C*1
|
|
DC holder*1
|
Front 5.5/2.5mm
|
|
DC terminal input interface*1
|
4PIN pitch 3.81 terminal power input port*1
|
|
Headphones
|
3.5MM support stereo with MIC headphone output port
|
|
USB 3.0
|
USB 3.0_A port*2
|
|
HDMI_OUT A port
|
Support HDMI 2.1 _OUT*1 (maximum support 7680*4320 60HZ output for single HDMI display)
|
|
SIM card
|
SIM card port*1
|
|
Wired network port
|
RJ45 network port*1
|
|
Horn
|
Dual channel 4 Europe 5W speaker interface 4PIN spacing 3.81 green terminals * 1
|
|
HDMI_IN
|
Support HDMI 2.0_4K input*1
|
|
Sub-board interface
|
RS232 COM port
|
RS232 output port DB9*2
|
|
USB 3.0
|
USB 3.0_A port*2
|
|
HDMI_OUT A port
|
Support HDMI 4K60HZ output*1
|
|
DP display interface
|
DP display output interface*1 7680x4320@30Hz output*1
|
|
Wired network port
|
RJ45 network port*1
|
|
M.2 internal SSD interface
|
M.2 built-in SSD expansion interface*1
|
|
RS485
|
RS485 3PIN pitch 3.81 green terminal block*1
|
|
Environmental parameters
|
General working temperature/humidity
|
-20℃-60℃, 30%RH-60%RH
|
|
General storage temperature/humidity
|
22±4℃ , 30%RH-60%RH
|
|
Housing
|
Color
|
Black
|
|
Material
|
Profile
|
|
Size
|
Motherboard Size
|
200*125mm
|
|
Sub-board size
|
200*125mm
|
|
Whole machine size
|
244*128*49.5mm
|
|
Other
|
Indicator light
|
Red and blue 2 colors
|
|
Button
|
Upgrade key*1
|
|
|
Power adapter
|
DC:12V/3A
|
