RK3566 Android 11 OS Industrial Embedded Android Board
Feature
- Support 7-inch to 84-inch various LVDS interface displays (point-to-point full HD display 1920*1080).
- Support EDP interface display screen.
- Support MIPI interface display screen.
- Support HD 2.0 high-definition output.
- Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB keyboard and mouse, multi-point optical touch.
- Multiple network interfaces: Ethernet, wireless Wifi, Bluetooth.
- Multi-channel USB interface, serial port.
- Strong anti-electromagnetic interference and electromagnetic compatibility.

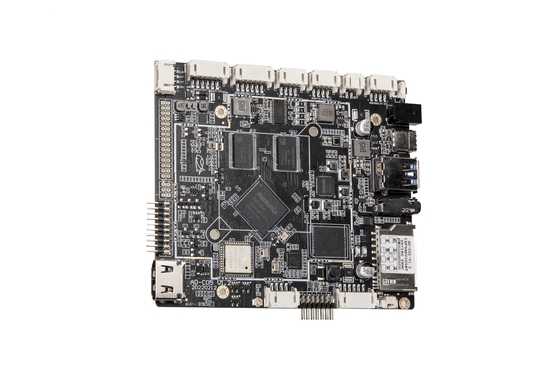

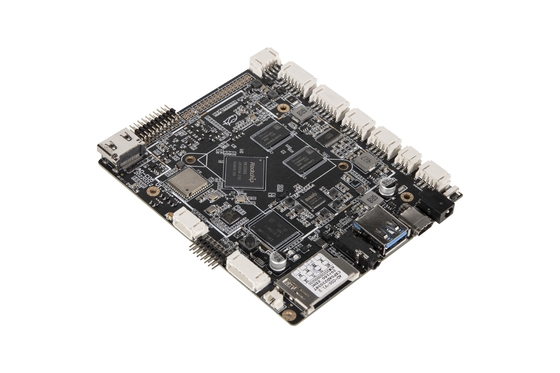

Product Pictures
Basic hardware specifications:
| CPU |
Rockchip RK3566 Quad-core 64-bit Cortex-A55 GPU Mali-G52 |
| Main frequency |
Up to 1.8GHz |
| RAM |
LPDDR3 1G/2G Optional |
| Built-in storage capacity |
EMMC 8GB/16G/32G/64G Optional |
|
Display interface
|
LVDS screen interface (single channel, 6-digit dual-channel, 8-digit dual-channel). Support maximum resolution 1920x1080, support 7"-84" display |
| EDP screen interface |
| MIPI screen interface |
| Screen voltage |
Support 3.3V/5V/12V optional |
| Touch screen |
Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch).
Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch.
|
|
The internet
|
With RJ45 interface, support 10/100 Ethernet. |
| Equipped with Wifi&BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0 |
| Image rotation |
Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, support gravity sensor function |
| Real Time Clock |
External real-time clock power supply battery |
| Interface device |
Support MIPI interface camera, up to 500W pixels |
| 2 USB HOST (secondary board), 1 USB 3.0 (support usb camera @500W usb printer, U disk, mouse, keyboard, standard USB peripherals) |
| 3 groups of serial ports. Support external serial port device module (3G module, NFC module, printer, card reader, etc.) |
| SD card, maximum support 32GB |
| Class D power amplifier: 3W*2 8 ohms, support microphone |
| HD 2.0 output |
| Audio |
MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP formats |
| Video |
Support 4K 60fps H.265/H.264/VP9 video decoding; support 1080P 100fps H.265/H.264 video encoding; support 8M ISP |
| Picture |
Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function |
| Power Adapter |
Input: AC100-240V.50-60HZ, output: DC12V 3A |
Basic software specifications:
| Operating system |
Android 11 |
| Basic software functions |
Web browsing, web chat, email, e-book, resource manager |
| Sound effect mode |
Clock, alarm clock, calculator, recording |
| Language support |
Multi-lingual |
| Recording |
Support MP3, WMA format recording |
| Tool |
Calendar |
| Alarm Clock |
| Calculator |
| Note |
| Weather + clock |
| Recording |
| Word processing |
EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| Ebook |
PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| Schedule |
Calendar |
| Input |
Standard Andriod keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
| Network |
Browser -ChromeLite |
| GOOGLE Market |
| Email |
| Gmail |
| Google talk |
| System Management |
APK installer |
| Original ecological Android system, open root permission, can carry out product customization development |
| Real-time remote monitoring, self-recovery from system crashes, 7*24 hours unattended |
| System setting |
| Google Maps |
| Global time |
| Support OTA remote upgrade |
Application Field
■ Commercial advertising display machine
■ POS machine
■ Digital photo frame advertising machine
■ Touch all-in-one machine
■ Self-service vending machine
Service:
1. PCBA design
2. Housing design
3. Software and hardware customization
4. Logo print on housing
5. Software customization: Booting image, Boot animation,UI, Launcher, APP, Function
6. Good quality products
7. full after-sales service with technology support
8.100% QC check before shipping
