4K Android Media Player with RK3288 Quad-Core Processor and High-Performance

4K Android Media Player with RK3288 Quad-Core Processor and High-Performance
4K Android Media Player with RK3288 Quad-Core Processor and High-Performance 4K Android Media Player with RK3288 Quad-Core Processor and High-Performance 4K Android Media Player with RK3288 Quad-Core Processor and High-Performance

Image Grand :  4K Android Media Player with RK3288 Quad-Core Processor and High-Performance

Détails sur le produit:
Place of Origin: China
Nom de marque: Sunchip,ADW
Certification: CE,RoSH,FCC
Model Number: AD-0140 BOX
Conditions de paiement et expédition:
Minimum Order Quantity: 1set
Prix: $66-$89
Packaging Details: 1pcs/box, 5pcs in a carton
Delivery Time: sample 3-5 days,batch order 15-30 days
Payment Terms: T/T,Western Union,PayPal,L/C
Supply Ability: 10000 pcs per month

4K Android Media Player with RK3288 Quad-Core Processor and High-Performance

description de
CPU: RK3288 quad-core Cortex-A17@1.8G GPU Mali T764 OS: Android 6.0,7.1, 9.0, 10.0 etc.
Warranty: 1 year Name: Media player box
Charger Type: US/UK/EU/AU optional Interface: USB , RJ45, HD MI , LAN, Audio
Remote Control: Support IR remote control Ram: 2GB /4GB optional
Rom: 16GB /32GB optionalal Usb: Yes
Video Format: MP4/AVI/WMV/MOV/MKV/FLV/RMVB Ethernet: 10/100 M
Gravity Induction: 0°90°180°270°manual/automatic Rotation

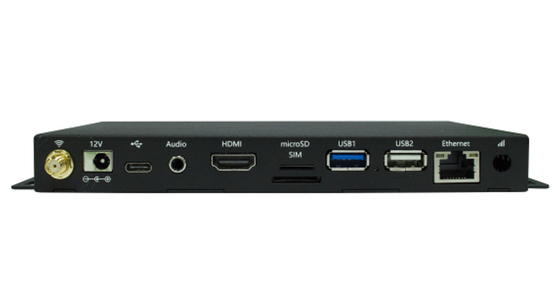

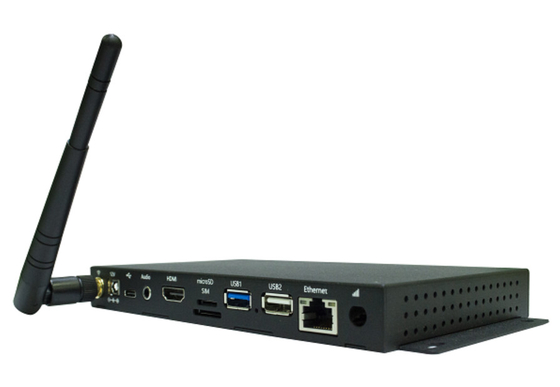

RK3288 4K Android  Media Player  BOX

4K Android Media Player with RK3288 Quad-Core Processor and High-Performance 04K Android Media Player with RK3288 Quad-Core Processor and High-Performance 1



Quad-Core High-Performance Board

Uses RK3288 quad-core Cortex-A17processor, supports 4K hardware decoding, has a rich expansion interface, as well as compatible with mainstream displays. It adopts the immersion gold process and has passed various pressure tests, which can be applied to the product directly.

RK3288 development board is an all-in-one high performance multi-core computing platform. Based on the Rockchip RK3288 SoC featuring an Arm Cortex-A17 (MP4) and Arm Mali-T760 (MP4), it features powerful graphics processing and video decoding ability, and support for Android OS.



High-performance Core Configuration

with RK3288 quad-core Cortex-A17 processor, frequency up to 1.8GHz, integrated quad-core Mali-T764 GPU. Its excellent performance makes products more possibilities.



Powerful Hardware Decoding Capability

It supports LVDS/EDP/ HD-MI display interfaces, 4K hardware decoding, dual-screen identical display/dual-screen differential display, and can drive the mainstream 5~100-inch display directly.



Running cloud-based digital signage software

The cost-effective, scalable and easy to use software is an excellent choice for businesses of any size and in any vertical. Users can login from any computer or a mobile device and create or update their content or campaign within minutes.

Digital signage player comes with 1-year warranty

Designed to run 24/7

Ideal for any digital signage application

4K Android Media Player with RK3288 Quad-Core Processor and High-Performance 2



Product Parameter
Hardware Spec
System
CPU&GPU
RK3288 Quad-core Cortex-A17 @1.8G GPU Mali T764
RAM
2GB/4GB (optional, default 2GB)
Memory
16GB/32GB(optional, default 16GB)
Operating system
Android 6.0-10.1
Network
WiFi
802.11b/g/n(2.4G/5G optional, default 2.4G)
Mobile network
Support full Netcom 4G (optional)
Bluetooth
Bluetooth 5.2
Ethernet
10M/100 M Ethernet
Language
Multi-Language support
Interface
USB interface
Support USB 2.0 host*2
Micro USB
USB_Debug interface*1
DC
DC power 12V input
SD card
Maximum support 64GB
HDMI
Support HDMI output Support 4K 60FPS frame rate
Screen interface
EDP screen interface / LVDS screen interface(optional)
Speaker output
8Ω*5W * 2(optional)
UART
UART2*1(optional)
infrared remote control
Support infrared remote control
USB port expantion
USB port expandert*1(optional)
RJ45
10/100M Ethernet port
Headset
3.5mm stereo headphone output
Media Playback
Video format
MPEG-1,MPEG-2,MPEG-4,H.263,H.264,H.265,VC1,VP8,RV etc.,support up to 3840x2160
Audio format
MP3,WMA,WAV, APE, FLAC, OGG,M4A,3GPP format
Text processing
EPUB, WORD, EXCEL, POWERPOINT, PDF
Ebook
PDF,TXT,CHM,DOC,EXCEL,EPUB,RTF,FB2
Image Format
JPG,BMP,PNG
System Management
APK install
APK installer
Root permission
Original Android system, open root permissions, product customization development
Remote control
Real-time remote monitoring, 7*24 hours unattended
OTA upgrade
Support OTA remote upgrade
Accessories
Adapter
12V/3A
User's Guide
E-user manual
Warranty Card
Standard
Product size(L*W*H)
195*100*20
colour box size(L*W*H)
colour box size(L*W*H)
Carton size(PCS/CTN)(L*W*H)
350*350*203mm / 5PCS/CTN





Payment and Delivery
1.Packing: carton box or wood case
2.Payment methods: accept T/T,Western Union,Paypal and Cash.
3.RMA Policy: customer bear all the freight and duty charge to factory,and the factory afford return freight charge.
4.Warranty: 12 months warranty. Paid maintenance over 12 months.
5.Remark: ROHS, CE & FCC certificates in e-file format are available.
6.MOQ: 1pc, sample order are welcome for your evaluation.
4K Android Media Player with RK3288 Quad-Core Processor and High-Performance 3

FAQ
1) Q: Is SUNCHIP a factory or simply a trading company?
A: We are a TRUE OEM/ODM factory. Please read our COMPANY PROFILE, for more information on this issue.

2) Q: What payment methods are available to me?
A: We accept most of the payment methods: accept VISA, Pay Later,T/T,Western Union,Paypal and Cash.

3) Q: How long is the warranty time?
A: 1 Year.

4) Q: What are the shipment terms and delivery times of your company?
A: Delivery / production time is directly affected by the size of the order. Also depending in which season you are shipping.

5) Q: Do you give any discounts ? A: Prices are directly affected by the quantity. We have many ways to help our partners when starting the sample processes. Make sure to ask our sales on how we can make you save some charges.

6) Q: I would like to add my company logo on your products, is this possible?
A: SURE.We customize on a regular basis products for many large retaillers and brands. If your order is at the below 10 units, we can consider this as a SAMPLE order, some fees might apply for the logo prints.Different methodes are used for logos, please ask our sales for more information on this issue, we will surely find the right solution for you.
